Portable Dry Powder Fire Extinguisher - ABC Stored Pressure Type

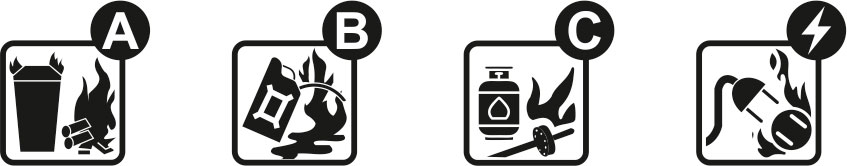

Suitable Classess of Fire :
Certifications :
Capacity :
Features :
- Stored pressure type, hence always ready for action
- Easy to operate & economical to maintain
- Dependable drawn cylinders with hydrostatic test as per standard
- UV resistant coating
- Controllable discharge mechanism with maximum retention of charge capacity
- Wide operating temperature range from -30° C to +60° C
Model Codes & Technical Specifications
| Capacity | Model | Agent | Gross Weight (kg) | Working Pressure (Bar) | Fire Rating | Discharge Time (sec) | Bulk Range (mtr) |
|---|---|---|---|---|---|---|---|
| 1 kg | VFAPQ-01-50 | MAP 50% | 2.2 | 15 | 1A:21B | 9 | 2 |
| VFAPQ-01-90 | MAP 90% | 1A:34B | 9 | 2 | |||
| 2 kg | VFAPQ-02-50 | MAP 50% | 3.7 | 15 | 2A:34B | 14 | 2.5 |
| VFAPQ-02-90 | MAP 90% | 2A:55B | 14 | 2.5 | |||
| 4 kg | VFAPQ-04-50 | MAP 50% | 7.1 | 15 | 2A:34B | 18 | 3 |
| VFAPQ-04-90 | MAP 90% | 2A:55B | 18 | 3 | |||
| 6 kg | VFAPQ-06-50 | MAP 50% | 9.6 | 15 | 2A:34B | 24 | 5 |
| VFAPQ-06-90 | MAP 90% | 2A:55B | 24 | 5 | |||
| 9 kg | VFAPQ-09-50 | MAP 50% | 13.9 | 15 | 2A:34B | 31 | 6 |
| VFAPQ-09-90 | MAP 90% | 2A:55B | 31 | 6 |
