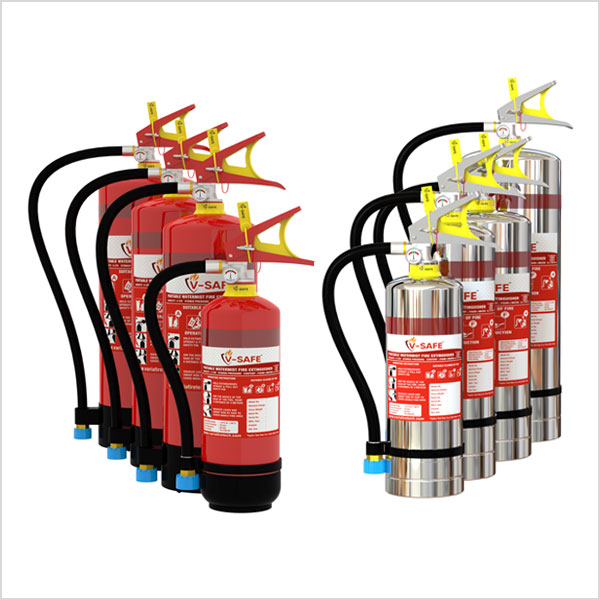

Portable Watermist Fire Extinguisher - Stored Pressure Type
Suitable Classess of Fire :
Certifications :
Capacity :
Features :
- Stored pressure type, hence always ready for action
- Easy to operate & economical to maintain
- Specially designed to generate a fine mist of 40-60 micron molecules
- UV resistant coating
- The fine spray from the misting nozzle provides safety from electrical shock
- Wide operating temperature range from +5° C to +60° C
Model Codes & Technical Specifications
| Capacity | Model | MOC | Agent | Gross Weight (kg) | Working Pressure (Bar) | Fire Rating | Discharge Time (sec) | Bulk Range (mtr) |
|---|---|---|---|---|---|---|---|---|
| 2 ltr | VFWMPQ-02 | MS CRCA Grade 4 | Water with Foam Additives | 4.2 | 15 | 1A:34B:5F | 15 | 3 |
| 3 ltr | VFWMPQ-03 | 5.7 | 15 | 1A:55B:15F | 18 | 3.5 | ||
| 6 ltr | VFWMPQ-06 | 10.9 | 15 | 2A:133B:25F | 32 | 4 | ||
| 9 ltr | VFWMPQ-09 | 14.5 | 15 | 3A:183B:75F | 44 | 4 | ||
| 2 ltr | VFWMSSPQ-02 | SS 304 | Water with Foam Additives | 3.7 | 15 | 1A:34B:5F | 15 | 3 |
| 3 ltr | VFWMSSPQ-03 | 5.1 | 15 | 1A:55B:15F | 18 | 3.5 | ||
| 6 ltr | VFWMSSPQ-06 | 10.1 | 15 | 2A:133B:25F | 32 | 4 | ||
| 9 ltr | VFWMSSPQ-09 | 13.2 | 15 | 3A:183B:75F | 44 | 4 |
